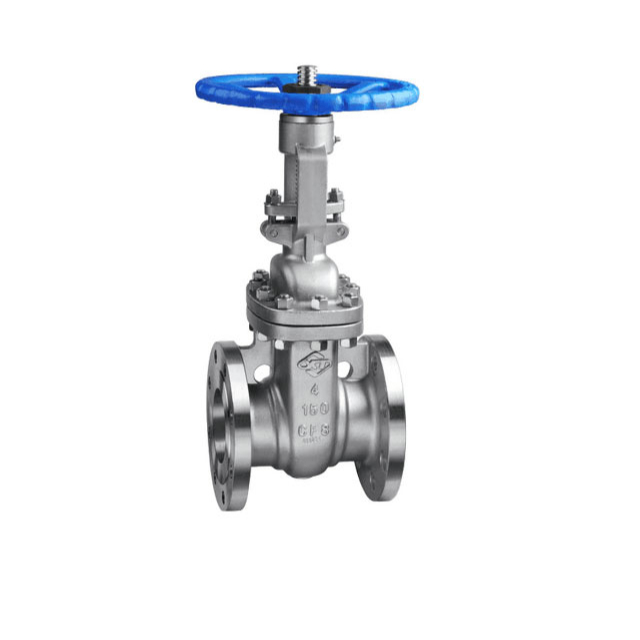

DIN Flange Stainless steel Gate Valve

DIN Flange Stainless steel Gate Valve

A gate valve, also known as a sluice valve, is a valve which opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar, so gate valves are often used when a straight-line flow of fluid and minimum restriction is desired. The gate faces can be parallel, but are most commonly wedge-shaped.

Application scope: petroleum chemical industry, electric power, metallurgy, medicine, real estate, municipal engineering and other industries.

  • Size :

    1/2″ up to 36″
  • Standard :

    DIN 3352
  • Material :

    Stainless Steel
  • Pressure :

    PN16-PN100
  • Face type :

    DIN 3202

 Description



Size Range: 1/2'' up to 36''
Pressure Range: PN16-PN100
End Connection: BW,RF,RTJ
Operate: Handwheel,Gear,Actuator
Material: Stainlss Steel
Seals: Metal to Metal



Valves Design: DIN 3352
Face to Face: DIN 3202
End Connection: DIN 2501,DIN 3239
Testing&Inspection: DIN 3230
Suitable Medium: Water,Oil,Air And Some Corrosive liquid
